Détails du produit
Conditions de paiement et d'expédition
Quantité de commande min: 1
Prix: 5
Numéro de modèle: |
LSQ-S2-SS (ISO B SS316) |
Connexion mécanique: |
Verrouillage des boules |
Pression de travail: |
2000 livres par pouce carré |
Plage de température: |
-20°C à +180°C |
Sceller: |
Flucarbone |
Tailles du corps: |
1/8, 1/4, 3/8, 1/2, 3/4, 1 pouce |
Flux nominal: |
1, 3, 6, 12, 28, 50 gpm |
Matériel: |
Acier inoxydable 316 |
Type de connexion: |
Doubler |
Norme de l'OIN: |
OIN 7241-B |
Séries compatibles: |
Parker 60, plus rapide HNV, Aeroquip FD45, Hansen HK |
Taille Hex1: |
17, 19, 24, 30, 36, 41 mm |
Taille Hex2: |
14, 19, 24, 27, 36, 41 mm |
Type de fil: |
G1 / 8 NPT1 / 8, G1 / 4 NPT1 / 4, G3 / 8 NPT3 / 8, G1 / 2 NPT1 / 2, G3 / 4 NPT3 / 4, G1 NPT1 |
Capacité de production: |
100000 ensembles par mois |
Numéro de modèle: |
LSQ-S2-SS (ISO B SS316) |
Connexion mécanique: |
Verrouillage des boules |
Pression de travail: |
2000 livres par pouce carré |
Plage de température: |
-20°C à +180°C |
Sceller: |
Flucarbone |
Tailles du corps: |
1/8, 1/4, 3/8, 1/2, 3/4, 1 pouce |
Flux nominal: |
1, 3, 6, 12, 28, 50 gpm |
Matériel: |
Acier inoxydable 316 |
Type de connexion: |
Doubler |
Norme de l'OIN: |
OIN 7241-B |
Séries compatibles: |
Parker 60, plus rapide HNV, Aeroquip FD45, Hansen HK |
Taille Hex1: |
17, 19, 24, 30, 36, 41 mm |
Taille Hex2: |
14, 19, 24, 27, 36, 41 mm |
Type de fil: |
G1 / 8 NPT1 / 8, G1 / 4 NPT1 / 4, G3 / 8 NPT3 / 8, G1 / 2 NPT1 / 2, G3 / 4 NPT3 / 4, G1 NPT1 |
Capacité de production: |
100000 ensembles par mois |

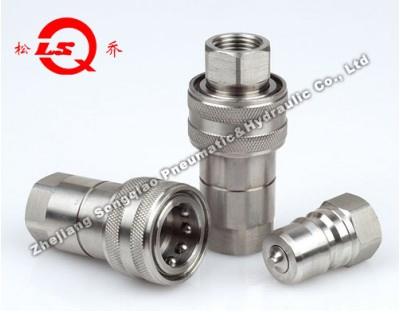

The LSQ-S2-SS close type hydraulic quick coupling is constructed from durable stainless steel 316, designed for demanding hydraulic applications where fluid transfer lines require frequent connection and disconnection.
Ideal for use in:
| Body Size (in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|---|
| Rated Pressure (PSI) | 2000 | 2000 | 1500 | 1500 | 1000 | 2000 |
| Rated Flow (GPM) | 1 | 3 | 6 | 12 | 28 | 50 |
| ISO | PARTNO. | LS | ¢D | HEX1 | A | T |
|---|---|---|---|---|---|---|
| 5 | LSQ-S2-SS-01SF | 50 | 24 | 17 | 10 | G1/8 NPT1/8 |
| 6.3 | LSQ-S2-SS-02SF | 58 | 28.5 | 19 | 13 | G1/4 NPT1/4 |
| 10 | LSQ-S2-SS-03SF | 65 | 35 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | LSQ-S2-SS-04SF | 73.4 | 42 | 30 | 17 | G1/2 NPT1/2 |
| 20 | LSQ-S2-SS-06SF | 92 | 54 | 36 | 22 | G3/4 NPT3/4 |
| 25 | LSQ-S2-SS-08SF | 103 | 65 | 41 | 23 | G1 NPT1 |
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
|---|---|---|---|---|---|---|---|
| 5 | LSQ-S2-SS-01PF | 31 | 10.8 | 19 | 14 | 10 | G1/8 NPT1/8 |
| 6.3 | LSQ-S2-SS-02PF | 36 | 14.2 | 22.8 | 19 | 13 | G1/4 NPT1/4 |
| 10 | LSQ-S2-SS-03PF | 40 | 19 | 25 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | LSQ-S2-SS-04PF | 46.5 | 23.5 | 28 | 27 | 17 | G1/2 NPT1/2 |
| 20 | LSQ-S2-SS-06PF | 56 | 31.5 | 36 | 36 | 22 | G3/4 NPT3/4 |
| 25 | LSQ-S2-SS-08PF | 63 | 37.8 | 35.5 | 41 | 23 | G1" NPT1" |
| ISO | PARTNO. | L | ¢D | HEX1 | HEX2 | T |
|---|---|---|---|---|---|---|
| 5 | LSQ-S2-SS-01 | 62.5 | 24 | 17 | 14 | G1/8 NPT1/8 |
| 6.3 | LSQ-S2-SS-02 | 72.2 | 28.5 | 19 | 19 | G1/4 NPT1/4 |
| 10 | LSQ-S2-SS-03 | 80.5 | 35 | 24 | 24 | G3/8 NPT3/8 |
| 12.5 | LSQ-S2-SS-04 | 91.5 | 42 | 30 | 27 | G1/2 NPT1/2 |
| 20 | LSQ-S2-SS-06 | 112.5 | 54 | 36 | 36 | G3/4 NPT3/4 |
| 25 | LSQ-S2-SS-08 | 126.5 | 65 | 41 | 41 | G1 NPT1 |
